| Brand Name: | APEEK |
| Model Number: | PEEK 1000 |
| MOQ: | 1KG |
| Price: | Negotiable |
| Supply Ability: | 250Tone per month |

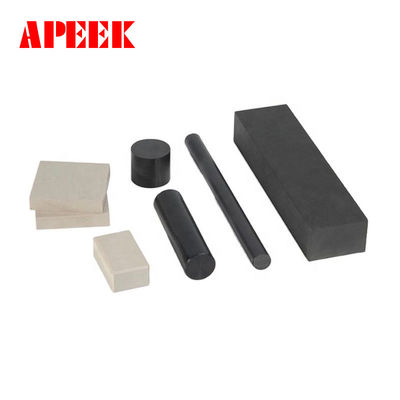

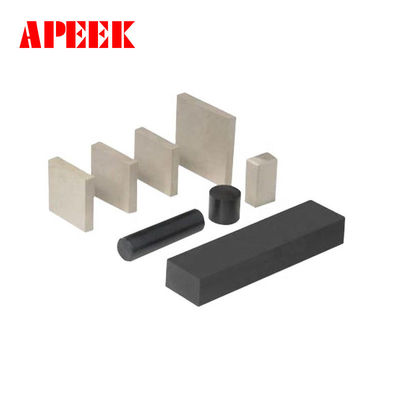

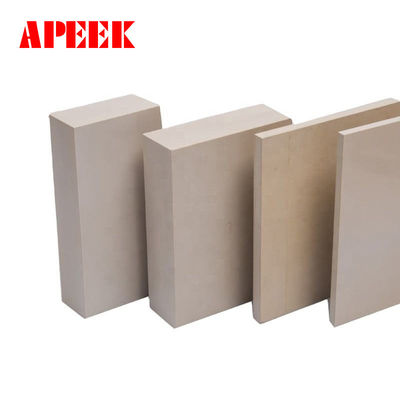

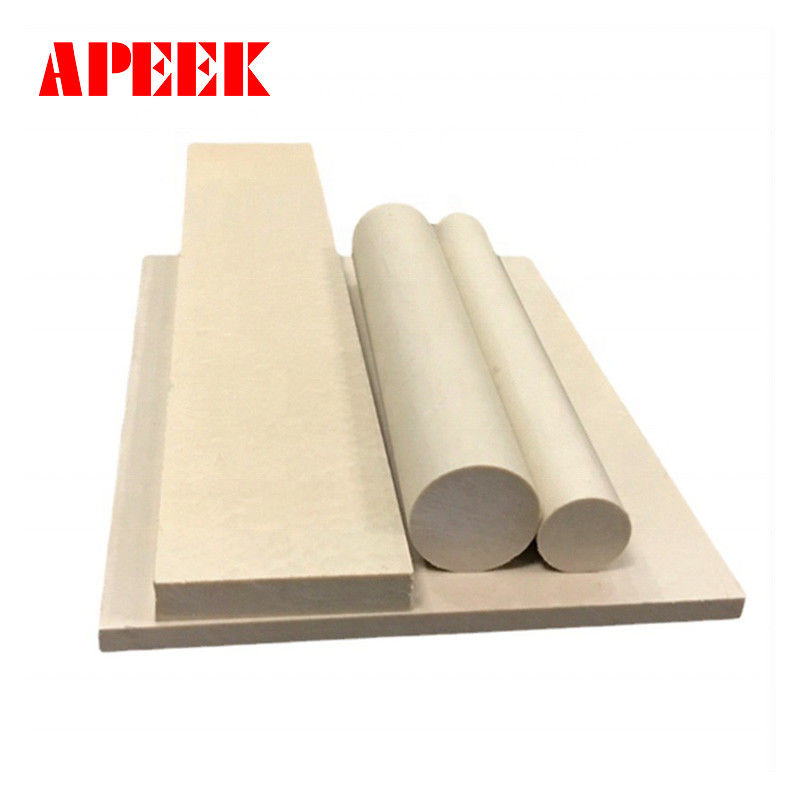

Natural Pure Peek Resin Sheet PEEK Plate 6-10mm Thickness
Overview Of Peek Resin Sheet
PEEK offers a unique combination of high mechanical properties, temperature resistance (-50°C to +250°c) and excellent chemical resistance, making it the mostpopular advanced plastics material. PEEK is also selfextinguishing according to UL94 V0.
Features And Benefits Peek Resin Sheet
Chemical resistant, hydrolysis resistant, autoclavable.
Easy to machine and fabricate.
Good mechanical properties at elevated temperatures.
Strong and stiff.
UL 94 V-0 flammability rating(0.059" thickness).
Very low smoke and toxic gas emissions when exposed to flame.
| PEEK Parameters | |||||
| NO. | Item no. | Unit | PEEK-1000 | PEEK-CA30 | PEEK-GF30 |
| 1 | Density | g/cm3 | 1.31 | 1.41 | 1.51 |
| 2 | Water absorption (23℃ in air) |
% | 0.2 | 0.14 | 0.14 |
| 3 | Tensile strength | MPa | 110 | 130 | 90 |
| 4 | Tensile strain at break | % | 20 | 5 | 5 |
| 5 | Compressive stress(at 2% nominal strain) | MPa | 57 | 97 | 81 |
| 6 | Charov impact strength(unnotched) | KJ/m2 | No break | 35 | 35 |
| 7 | Charov impact strength(notched) | KJ/m2 | 3.5 | 4 | 4 |
| 8 | Tensile modulus of elasticity | MPa | 4400 | 7700 | 6300 |
| 9 | Ball indentation hardness | N/mm2 | 230 | 325 | 270 |
| 10 | Rockwell hardness | -- | M105 | M102 | M99 |
PEEK RESIN SHEET SPECIFICATION
| Thickness*Width*Length Dimension(MM) |
Weight(KG) | Thickness*Width*Length Dimension(MM) |
Weight(KG) |
| 1x610x1220 | 1.100 | 25x610x1220 | 26.330 |
| 2x610x1220 | 2.110 | 30x610x1220 | 31.900 |
| 3x610x1220 | 3.720 | 35x610x1220 | 38.480 |
| 4x610x1220 | 5.030 | 40x610x1220 | 41.500 |
| 5x610x1220 | 5.068 | 45x610x1220 | 46.230 |
| 6x610x1220 | 6.654 | 50x610x1220 | 53.350 |
| 8x610x1220 | 8.620 | 60x610x1220 | 62.300 |
| 10x610x1220 | 10.850 | 100x610x1220 | 102.500 |
| 12x610x1220 | 12.550 | 120x610x1220 | 122.600 |
| 15x610x1220 | 15.850 | 150x610x1220 | 152.710 |
| 20x610x1220 | 21.725 | 160x610x1220 | 160.900 |
Application of Peek Resin Sheet
Aerospace parts
Semiconductor machinery components
Food processing machinery components
Back up rings
Medical instrument parts
