| Brand Name: | APEEK |
| Model Number: | PEEK 1000 |
| MOQ: | 1KG |
| Price: | 50-65 |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 250Tone per month |

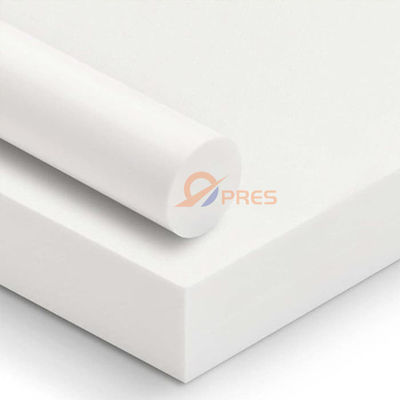

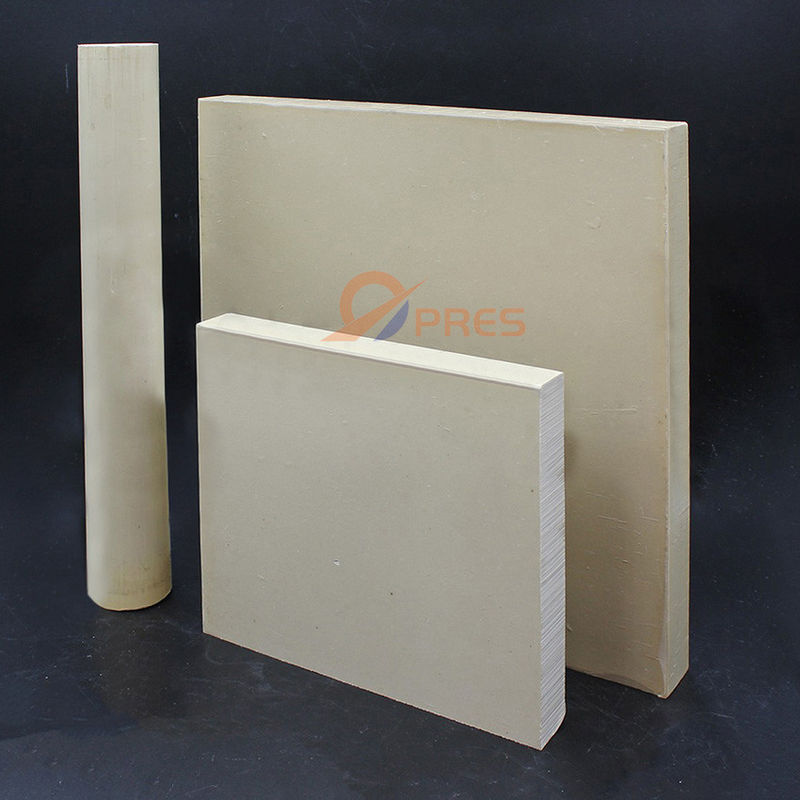

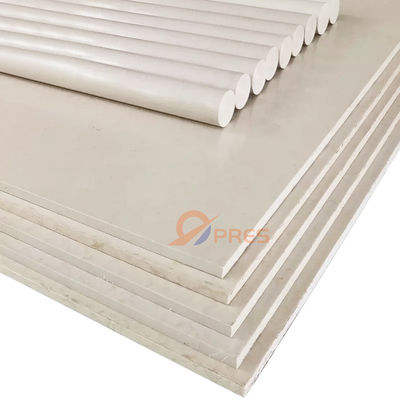

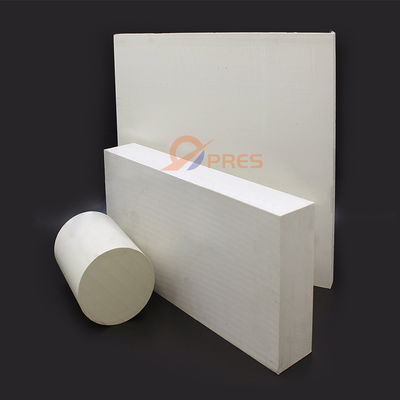

Custom Thickness 20mm virgin pure PEEK Plastic Sheet
PEEK is a high-performance thermoplastic that is tough, durable, firm, and creep resistant. It offers excellent thermal, chemical, and hydrolysis resistance as well as excellent resistance to abrasion and dynamic fatigue. Its ability to run at high continuous temperatures up to (250° C) without permanent property
degradation along with stable electrical properties makes PEEK an excellent alternative to fluoropolymers in aggressive environments.
PEEK has also been shown to exhibit very low smoke and toxic gas emission when exposed to flame.
PEEK Material Characteristics:
1.Mechanical properties (variable stress and excellent fatigue resistance)
| PEEK Parameters | |||||
| NO. | Item no. | Unit | PEEK-1000 | PEEK-CA30 | PEEK-GF30 |
| 1 | Density | g/cm3 | 1.31 | 1.41 | 1.51 |
| 2 | Water absorption (23℃ in air) |
% | 0.2 | 0.14 | 0.14 |
| 3 | Tensile strength | MPa | 110 | 130 | 90 |
| 4 | Tensile strain at break | % | 20 | 5 | 5 |
| 5 | Compressive stress(at 2% nominal strain) | MPa | 57 | 97 | 81 |
| 6 | Charov impact strength(unnotched) | KJ/m2 | No break | 35 | 35 |
| 7 | Charov impact strength(notched) | KJ/m2 | 3.5 | 4 | 4 |
| 8 | Tensile modulus of elasticity | MPa | 4400 | 7700 | 6300 |
| 9 | Ball indentation hardness | N/mm2 | 230 | 325 | 270 |
| 10 | Rockwell hardness | -- | M105 | M102 | M99 |
| PEEK SHEET&RODS Standard SIZE | ||||
| Item | Thick/Dia(mm) | Width/Length(mm) | Density (g/cm3) | Color |
| PEEK resine sheet | 6-120 | 620X1240 | 1.31 | Natural, Black |
| PEEK resine rod | 6-100 | 1000 | 1.31 | Natural, Black |
| PEEK+GF Sheet | 6-100 | 620x1240 | 1.51 | Natural, Black |
| PEEK+GF Rod | 10-50 | 1000 | 1.51 | Natural, Black |
