| Brand Name: | Pres |
| Model Number: | G1030 |
| MOQ: | 1kg |
| Price: | 60USD-95USD per KG |
| Payment Terms: | D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 250Tones per month |

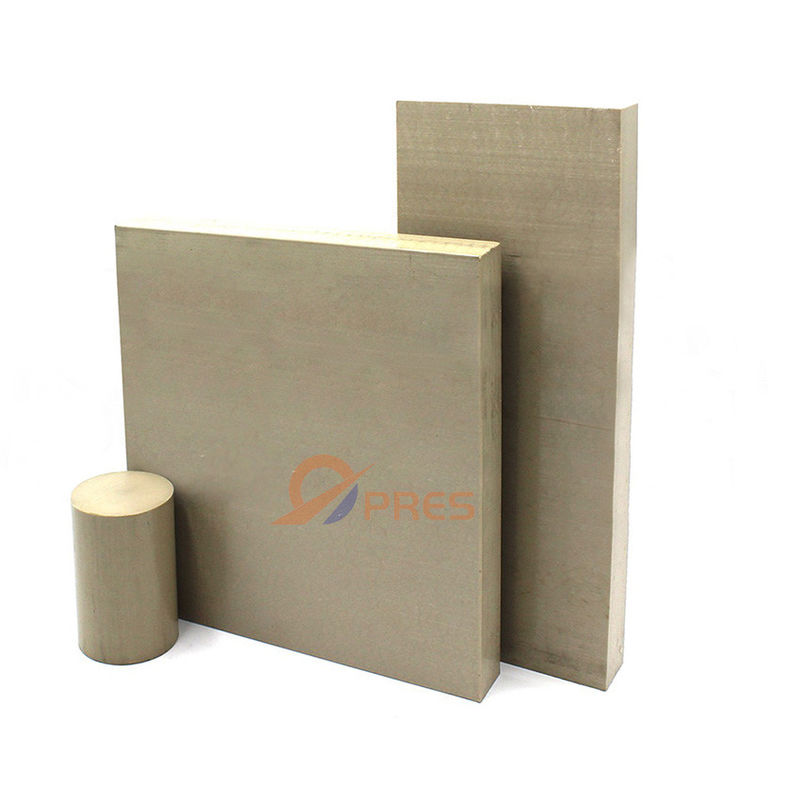

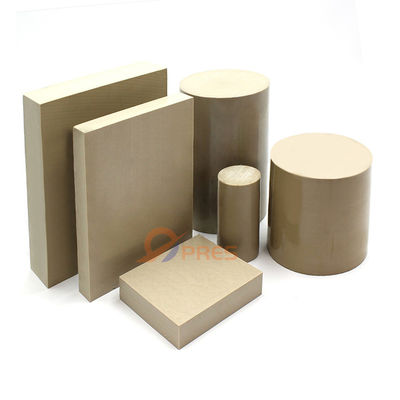

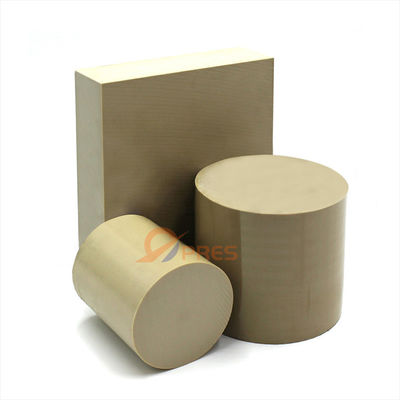

Custom Thickness 8mm x620mm x1240mm GF30 Glass Fiber Filled Reinforced Continuous Extrusion PEEK Sheet/Plate/Board
Glass Fiber Filled PEEK Advantage:
Compared with unfilled PEEK,this 30% glass fiber reinforced PEEK material exhibits increased mechanical strength and high rigidity.Plus, improved creep strength and dimensional stability are delivered by the 30% glass fiber filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.PEEK GF30 is widely used in the buyer cases, which has a marked compressive strength requirement on the product designing.
PEEK Material Characteristics:
1.Mechanical properties (variable stress and excellent fatigue resistance)
2.High temperature resistance (long-term use at 260℃)
3.Self-lubricity (low coefficient of friction and wear resistance)4.Chemical resistance (corrosion resistance)
5.Flame retardant(can reach the highest flame retardant standard)
6.Peeling resistance (can be made into thin coated or electromagnetic wire)
7.Fatigue resistance (resin material has the best fatigue resistance)
8.Hydrolysis resistance (excellent in high temperature and high pressure water)
9.Radiation resistance (up to 1100Mr AD)
PEEK SHEET SPECIFICATION
| PEEK SHEET&RODS Standard SIZE | ||||
| Item | Thick/Dia(mm) | Width/Length(mm) | Density (g/cm3) | Color |
| PEEK resine sheet | 6-120 | 620X1240 | 1.31 | Natural, Black |
| PEEK resine rod | 6-100 | 1000 | 1.31 | Natural, Black |
| PEEK+GF Sheet | 6-100 | 620x1240 | 1.51 | Natural, Black |
| PEEK+GF Rod | 10-50 | 1000 | 1.51 | Natural, Black |
Images:
