| Brand Name: | Pres |
| Model Number: | PEEK 1130 |
| MOQ: | 1KG |
| Price: | 58USD-96USD per KG |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 250Tones per month |

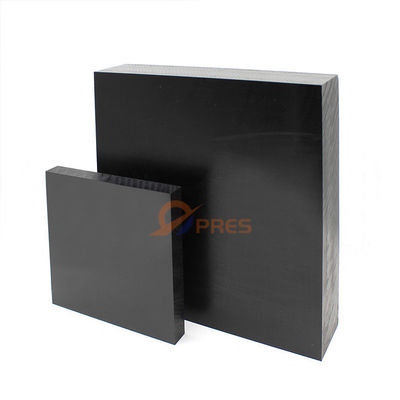

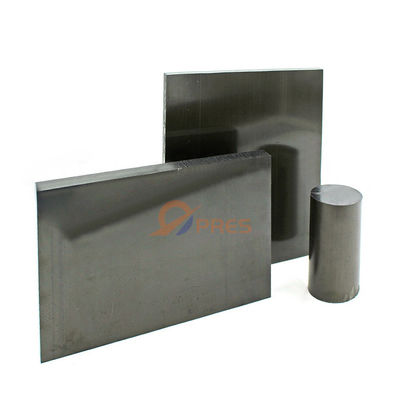

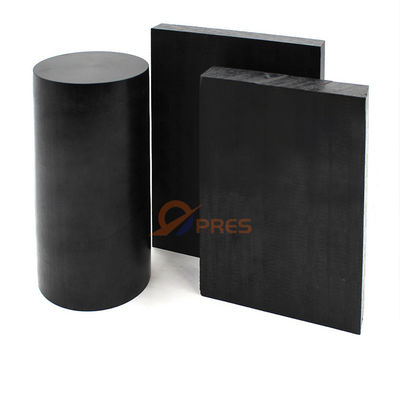

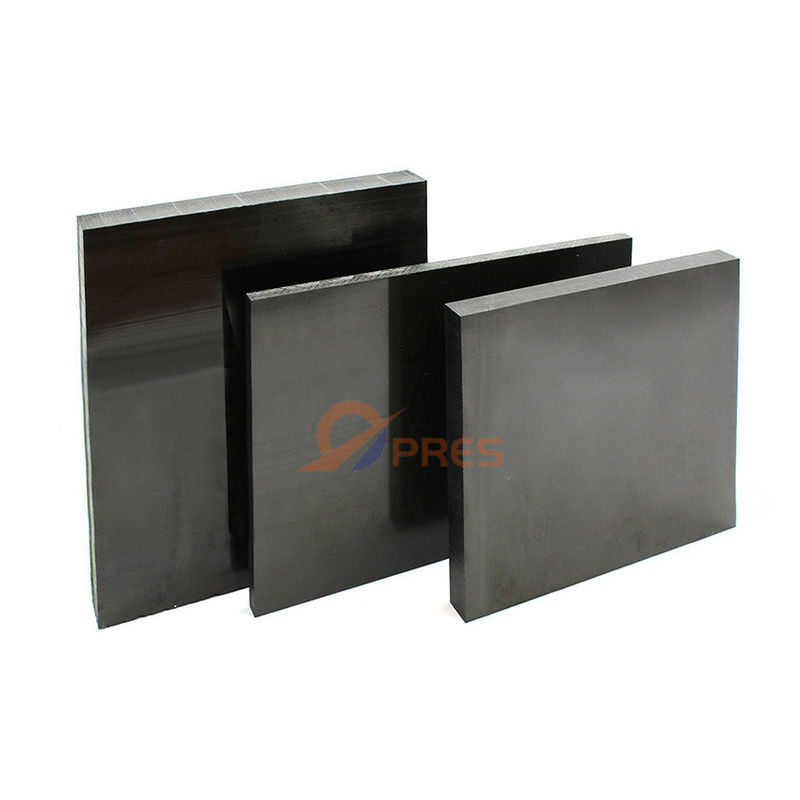

Reinforced peek 30% cf carbon fiber reinforced PEEK block/sheet
What is Carbo fiber PEEK ?
PEEK1130CF30 is a 30% carbon filled PEEK material that is manufactured by Dongguan Pres. Its carbon fiber reinforcement supports the material a high level of rigidity. Carbon fiber reinforced PEEK demonstrates very high mechanical strength values.However,30% carbon fiber reinforced PEEK(1.4±0.02g/cm3)presents lower density than 30% glass fiber filled peek(1.5±0.02g/cm3).Besides,carbon fiber composites tend to be less abrasive than glass fibers while simultaneously resulting in improved wear and friction properties. The addition of carbon fibers also ensures a significantly higher level of heat conductivity which is also beneficial for increasing part life in sliding applications. Carbon filled PEEK has also an excellent resistance to hydrolysis in boiling water and super heated steam.
| NO. | Item no. | Unit | PEEK-1000 | PEEK-CA30 | PEEK-GF30 |
| 1 | Density | g/cm3 | 1.31 | 1.41 | 1.51 |
| 2 | Water absorption (23℃ in air) |
% | 0.2 | 0.14 | 0.14 |
| 3 | Tensile strength | MPa | 110 | 130 | 90 |
| 4 | Tensile strain at break | % | 20 | 5 | 5 |
| 5 | Compressive stress(at 2% nominal strain) | MPa | 57 | 97 | 81 |
| 6 | Charov impact strength(unnotched) | KJ/m2 | No break | 35 | 35 |
| 7 | Charov impact strength(notched) | KJ/m2 | 3.5 | 4 | 4 |
| 8 | Tensile modulus of elasticity | MPa | 4400 | 7700 | 6300 |
| 9 | Ball indentation hardness | N/mm2 | 230 | 325 | 270 |
| 10 | Rockwell hardness | -- | M105 | M102 | M99 |
Our Advantages:
1. Prompt delivery and consider services
2. Competitive price and high quality control
3. ISO9001:2008/QS9000/SGS approved
4. OEM&ODM accepted/ Cut Arbitrarily
5. Customers’ 2D or 3D drawings or samples are welcomed
6. 10 years experience focus on manufacturing PEEK sheet and Tube
One stop PEEK service: From granual to shape,from shape to parts
Quality control in every steps
