| Brand Name: | APEEK |
| Model Number: | PEEK 1000 |
| MOQ: | 1KG |
| Price: | Negotiable |
| Supply Ability: | 250Tone per month |

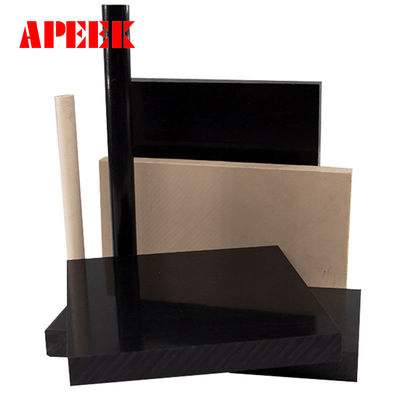

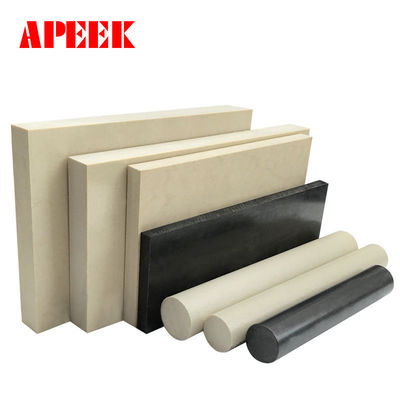

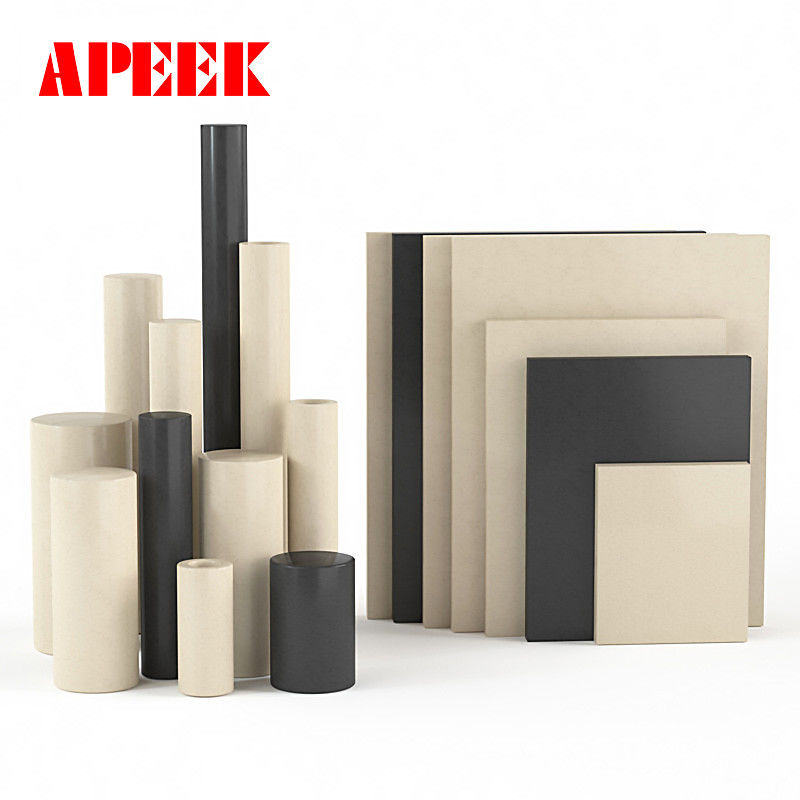

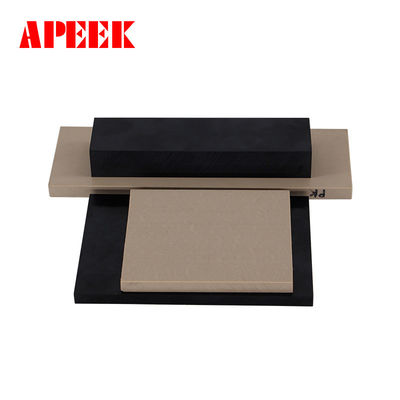

Customized Polyetheretherketone Plastic PEEK Plate
PEEK Descriptions:
PEEK is a semi-crystalline,show high stiffness and hardness. and an unique high tensile strength and fatiue strength,Resistant to high-engery radiation.High abrasion and wear resistant.Good electrical insulator even at high voltages,and is characterised mainly by its very good mechanical properties and exceptional dimensional stability even continous operation at high temperatures of up to 250°C.
PEEK Material Characteristics:
1.Mechanical properties (variable stress and excellent fatigue resistance)
2.High temperature resistance (long-term use at 260℃)
3.Self-lubricity (low coefficient of friction and wear resistance)4.Chemical resistance (corrosion resistance)
5.Flame retardant(can reach the highest flame retardant standard)
6.Peeling resistance (can be made into thin coated or electromagnetic wire)
7.Fatigue resistance (resin material has the best fatigue resistance)
8.Hydrolysis resistance (excellent in high temperature and high pressure water)
9.Radiation resistance (up to 1100Mr AD)
PEEK RESIN SHEET SPECIFICATION
| Thickness*Width*Length Dimension(MM) |
Weight(KG) | Thickness*Width*Length Dimension(MM) |
Weight(KG) |
| 1x610x1220 | 1.100 | 25x610x1220 | 26.330 |
| 2x610x1220 | 2.110 | 30x610x1220 | 31.900 |
| 3x610x1220 | 3.720 | 35x610x1220 | 38.480 |
| 4x610x1220 | 5.030 | 40x610x1220 | 41.500 |
| 5x610x1220 | 5.068 | 45x610x1220 | 46.230 |
| 6x610x1220 | 6.654 | 50x610x1220 | 53.350 |
| 8x610x1220 | 8.620 | 60x610x1220 | 62.300 |
| 10x610x1220 | 10.850 | 100x610x1220 | 102.500 |
| 12x610x1220 | 12.550 | 120x610x1220 | 122.600 |
| 15x610x1220 | 15.850 | 150x610x1220 | 152.710 |
| 20x610x1220 | 21.725 | 160x610x1220 | 160.900 |
Application of Peek Sheet
● Analytical Instruments Industry
● Food Processing and Filling Machinery Industry
● Electronics Semiconductor Industry
● Medical Device Industry
● Automotive Industry
● Petrochemical Machinery Industry
● Textile Machinery Industry
● Aerospace, Military Industryratio
Images:
