| Brand Name: | APEEK |
| Model Number: | PEEK 1000 |
| MOQ: | 1KG |
| Price: | Negotiable |
| Supply Ability: | 250Tone per month |

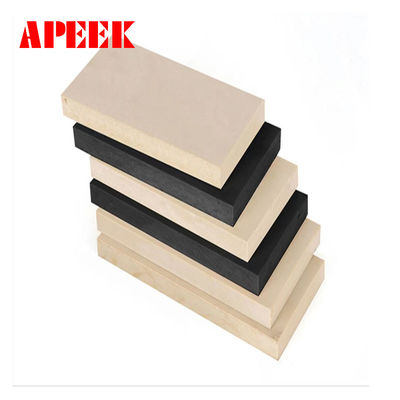

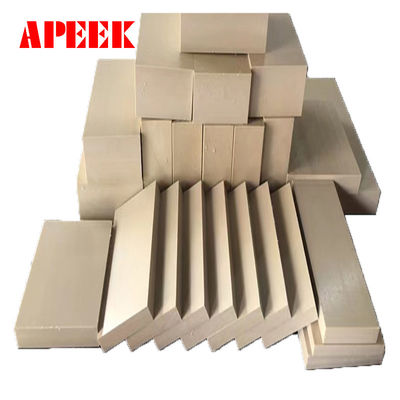

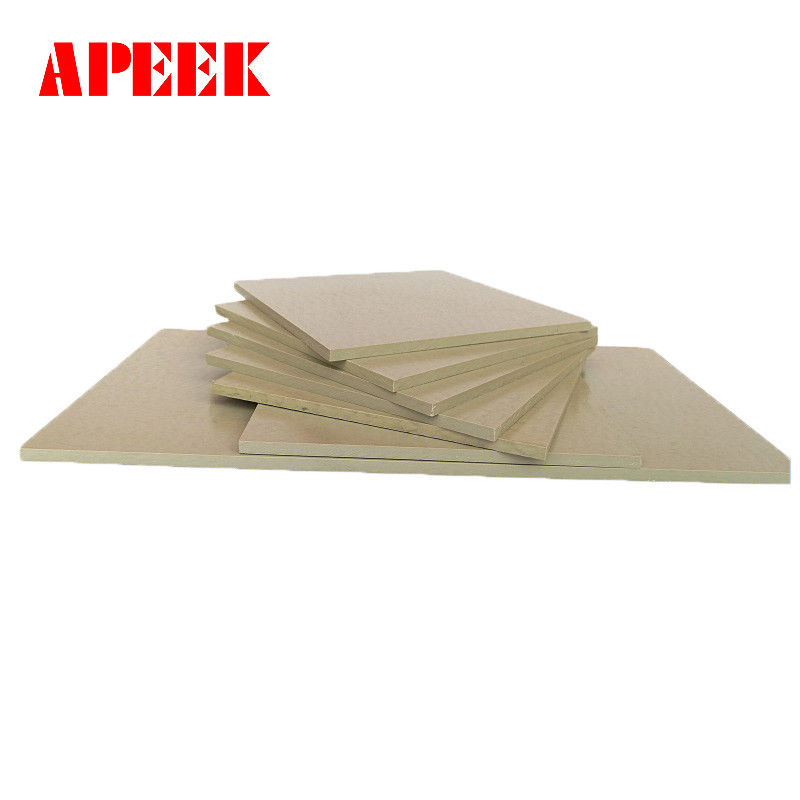

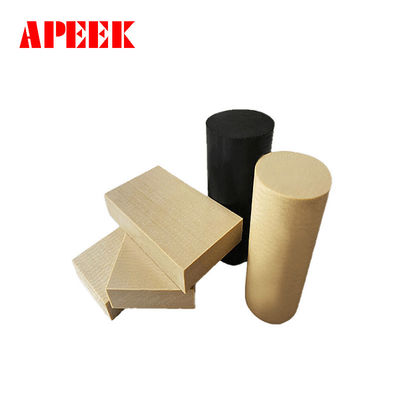

Victrex 450G PEEK Sheet PEEK Plate
What is PEEK?
PEEK(Polyetheretherketone)is a kind of heat-resistant, high performance thermoplastic special engineering plastics. It has good mechanical properties and chemical resistance, abrasion resistance, and hydrolysis resistance properties etc.; it has a light proportion and self-lubricating properties. Our Company, has studied and applied this material in many industries for many years.Due to very good processing properties, it can be filled with carbon fiber, Fiberglass and MoS2 etc. In order to improve lubrication performance and mechanical strength further.
PEEK Material Characteristics:
1.Mechanical properties (variable stress and excellent fatigue resistance)
2.High temperature resistance (long-term use at 260℃)
3.Self-lubricity (low coefficient of friction and wear resistance)4.Chemical resistance (corrosion resistance)
5.Flame retardant(can reach the highest flame retardant standard)
6.Peeling resistance (can be made into thin coated or electromagnetic wire)
7.Fatigue resistance (resin material has the best fatigue resistance)
8.Hydrolysis resistance (excellent in high temperature and high pressure water)
9.Radiation resistance (up to 1100Mr AD)
PEEK RESIN SHEET SPECIFICATION
| Thickness*Width*Length Dimension(MM) |
Weight(KG) | Thickness*Width*Length Dimension(MM) |
Weight(KG) |
| 1x610x1220 | 1.100 | 25x610x1220 | 26.330 |
| 2x610x1220 | 2.110 | 30x610x1220 | 31.900 |
| 3x610x1220 | 3.720 | 35x610x1220 | 38.480 |
| 4x610x1220 | 5.030 | 40x610x1220 | 41.500 |
| 5x610x1220 | 5.068 | 45x610x1220 | 46.230 |
| 6x610x1220 | 6.654 | 50x610x1220 | 53.350 |
| 8x610x1220 | 8.620 | 60x610x1220 | 62.300 |
| 10x610x1220 | 10.850 | 100x610x1220 | 102.500 |
| 12x610x1220 | 12.550 | 120x610x1220 | 122.600 |
| 15x610x1220 | 15.850 | 150x610x1220 | 152.710 |
| 20x610x1220 | 21.725 | 160x610x1220 | 160.900 |
Application of Peek Sheet
● Analytical Instruments Industry
● Food Processing and Filling Machinery Industry
● Electronics Semiconductor Industry
● Medical Device Industry
● Automotive Industry
● Petrochemical Machinery Industry
● Textile Machinery Industry
● Aerospace, Military Industryratio
