| Brand Name: | Pres |
| Model Number: | PRS-P3010 |
| MOQ: | 1kg |
| Price: | 18USD/KG |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

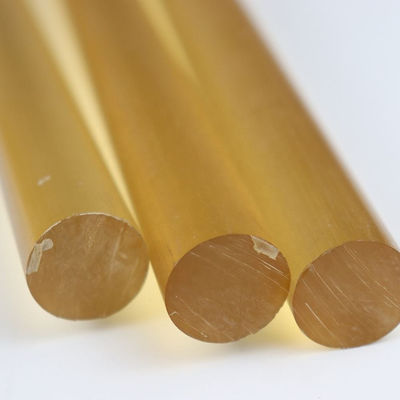

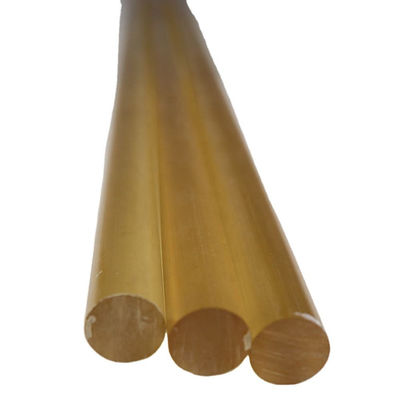

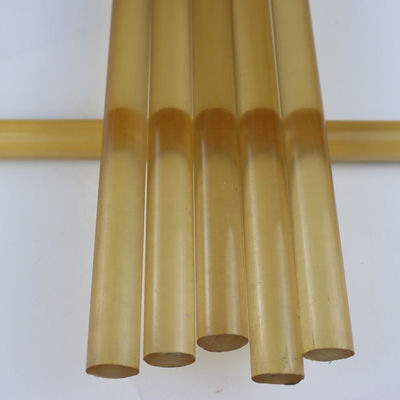

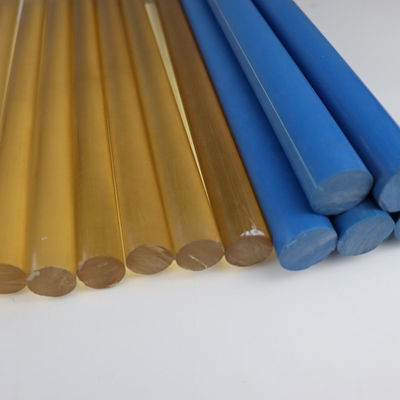

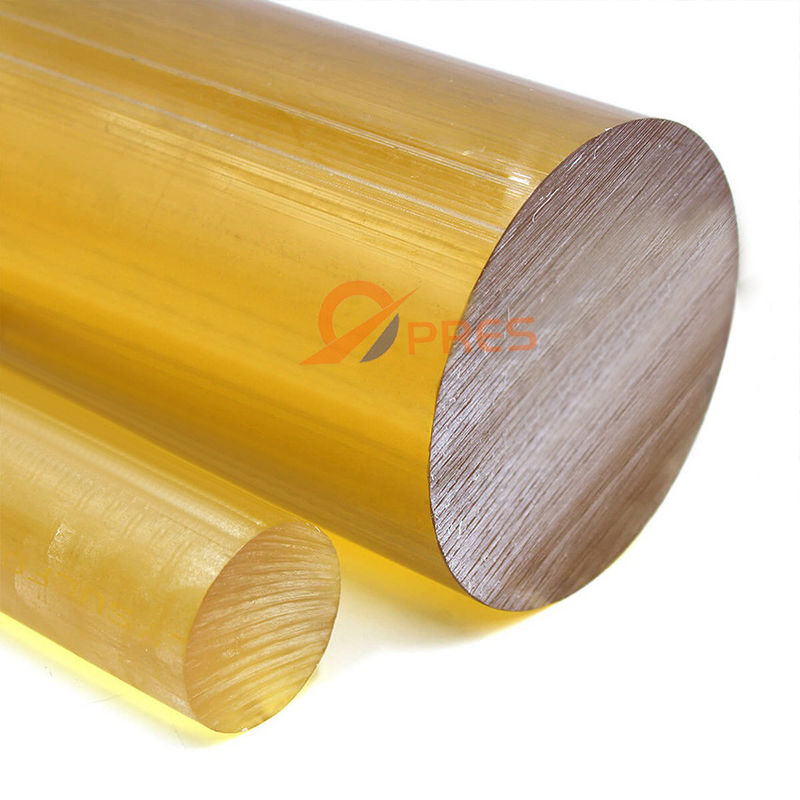

Medical Grade PPSU Polyphenylsulfone resin Round Bar
PPSU board is a high-performance engineering plastic sheet. It has excellent high temperature resistance and can maintain stability over a wide temperature range. PPSU board has strong chemical corrosion resistance and can resist the erosion of various chemical substances. It has high strength, good toughness, and is not easily broken or deformed. At the same time, the board has good insulation and flame retardancy. Widely used in medical, food processing, electronics and other fields, such as the production of medical devices, food containers, electrical insulation components, etc. PPSU board is safe, reliable, and easy to process, making it an ideal engineering material choice.
Characteristic:
1.Natural with high HDT/A of 196℃
2.High RTI of 180℃
3.Superior toughness and impact resistance strength with 690J/m
4.Exceptional long-term hydrolytic stability
5.Withstands over 1000 cycles of steam sterilization at 134℃
without any significant loss of properties
6.Inherently flame retardant and colorable
The Main specifications and Properties of PPSU
| Typical Value | Testing Method | Unit | F1150 | F1250 | F1350 | M1150 |
| Density | Iso 1183 | g/cm3 | 12.9 | 12.9 | 12.9 | 12.8 |
| MoistureAbsorption,Equilibrium 23°C/50%r.h | 1so 62 | % | 0.6 | 0.6 | 0.6 | 0.3 |
| Mold shrinkage-Flow | Iso 2577,294-4 | % | 0.9 | 0.9 | 0.9 | 0.9 |
| HDT/A @l.8MPa | 1so 75-1/-2 | °C | 196 | 196 | 196 | 185 |
| Tensile strength | Iso 527-1/-2 | MPa | 70 | 70 | 70 | 75 |
| Tensile Modulus | Iso 527-1/-2 | MPa | 2270 | 2270 | 2270 | 2690 |
| TensileElongation(Yield) | Iso 527-1/-2 | % | 7.8 | 7.8 | 7.8 | 7 |
| Flexural strength | I5o 178 | MPa | 105 | 105 | 105 | 105 |
| Flexural Modulus | IsO 178 | MPa | 2400 | 2400 | 2400 | 2760 |
| Notched lzod impact | ISO 18o/A | KJ/m2 | 68 | 68 | 68 | 10 |
