| Brand Name: | Pres |
| Model Number: | PEEK CF30 |
| MOQ: | 1KG |
| Price: | 58USD-96USD per KG |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 250Tones per month |

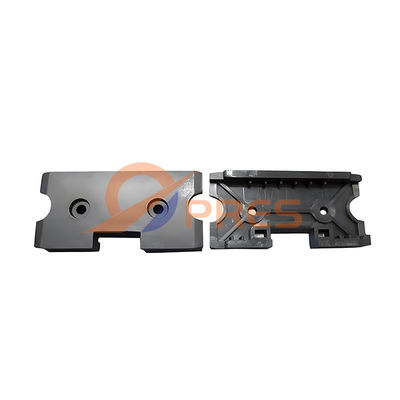

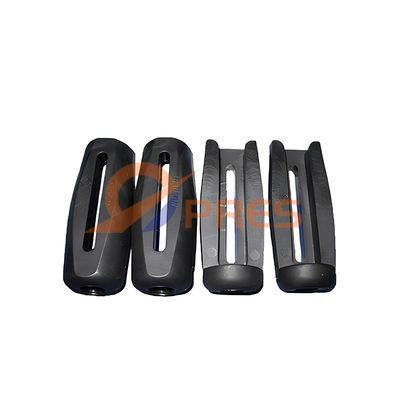

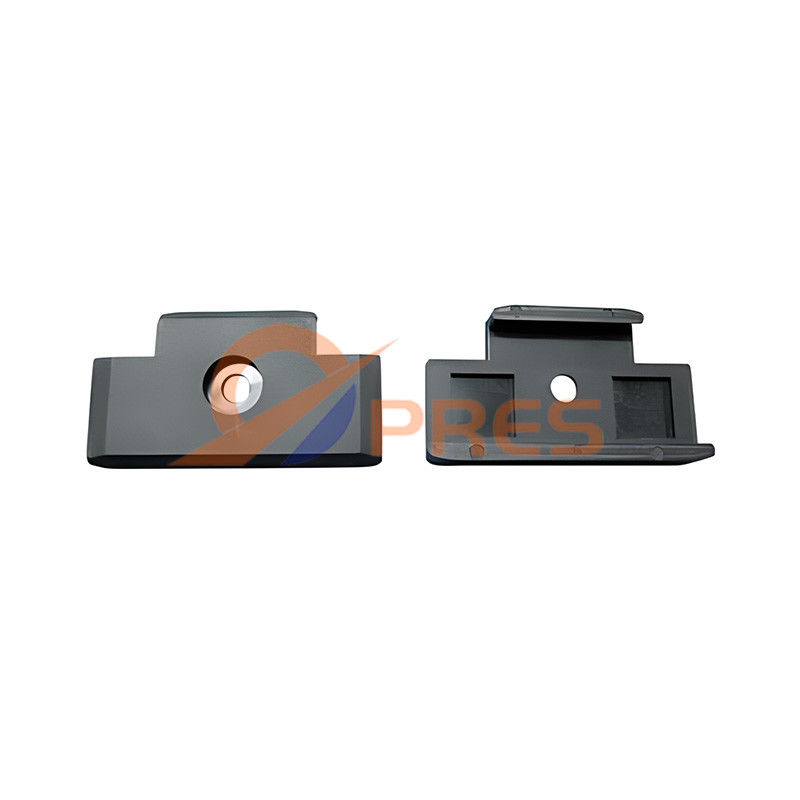

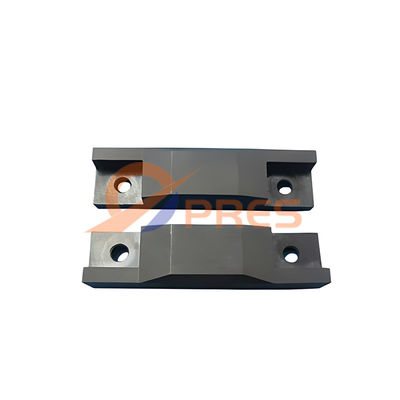

30% carbon fiber reinforced wear resistance high temperature resistance peek slider
Carbon fiber reinforced wear-resistant PEEK slider is a high-performance engineering component. It uses polyetheretherketone (PEEK) as the base material and is reinforced with carbon fiber. The addition of carbon fiber significantly improves the strength and rigidity of the slider. At the same time, the slider has excellent wear resistance and can operate stably for a long time in harsh working environments, reducing frequent replacement due to wear. It is suitable for mechanical systems with high load and high-speed motion, such as automation equipment, precision instruments, etc. Its excellent performance can improve the reliability and work efficiency of the equipment, and reduce maintenance costs.
| NO. | Item no. | Unit | PEEK-1000 | PEEK-CA30 | PEEK-GF30 |
| 1 | Density | g/cm3 | 1.31 | 1.41 | 1.51 |
| 2 | Water absorption (23℃ in air) |
% | 0.2 | 0.14 | 0.14 |
| 3 | Tensile strength | MPa | 110 | 130 | 90 |
| 4 | Tensile strain at break | % | 20 | 5 | 5 |
| 5 | Compressive stress(at 2% nominal strain) | MPa | 57 | 97 | 81 |
| 6 | Charov impact strength(unnotched) | KJ/m2 | No break | 35 | 35 |
| 7 | Charov impact strength(notched) | KJ/m2 | 3.5 | 4 | 4 |
| 8 | Tensile modulus of elasticity | MPa | 4400 | 7700 | 6300 |
| 9 | Ball indentation hardness | N/mm2 | 230 | 325 | 270 |
| 10 | Rockwell hardness | -- | M105 | M102 | M99 |
Our Advantages:
1. Prompt delivery and consider services
2. Competitive price and high quality control
3. ISO9001:2008/QS9000/SGS approved
4. OEM&ODM accepted/ Cut Arbitrarily
5. Customers’ 2D or 3D drawings or samples are welcomed
6. 10 years experience focus on manufacturing PEEK sheet and Tube
One stop PEEK service: From granual to shape,from shape to parts
Quality control in every steps
