| Brand Name: | APEEK |
| Model Number: | PEEK 1000 |
| MOQ: | 1000pcs |
| Price: | 1usd-2usd per pieces |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 piece per month |

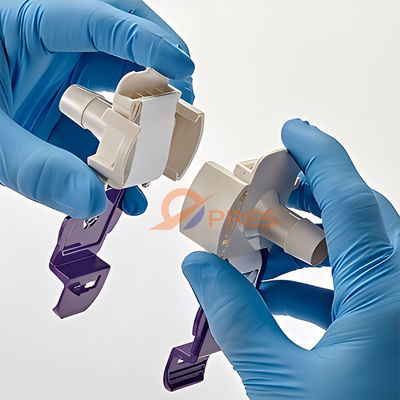

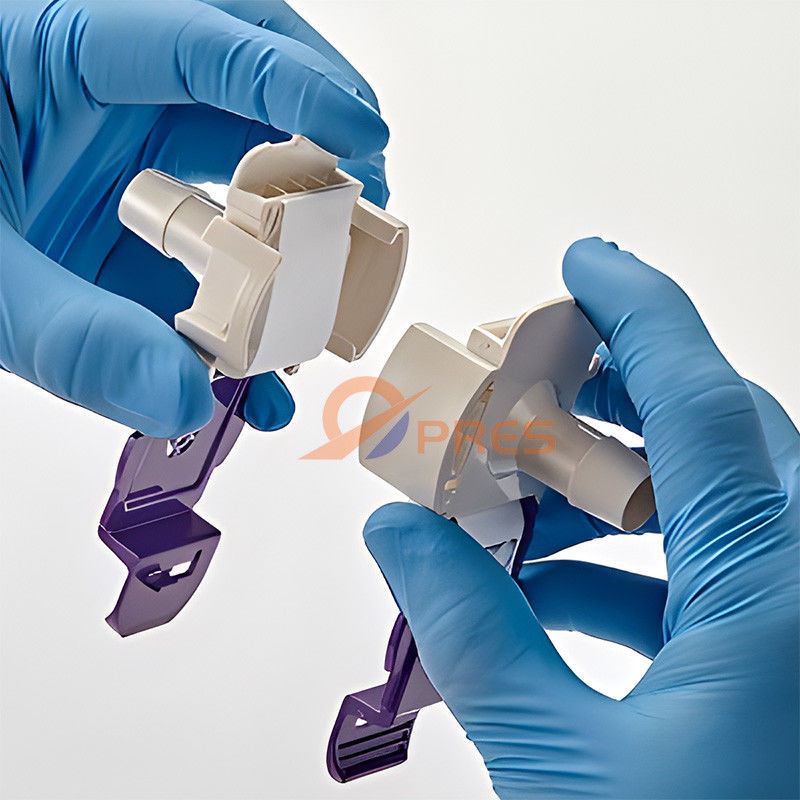

PEEK medical grade sterile connector
PEEK medical grade sterile connectors are important components in the medical field. It is made of polyetheretherketone (PEEK) material and has multiple advantages. Firstly, PEEK material itself has excellent biocompatibility, is non irritating and non-toxic to human tissues, and is suitable for contact with the human body. Secondly, it has excellent chemical stability and can resist the erosion of various chemical substances in medical environments. Furthermore, its high mechanical strength ensures reliable connection of the connector in frequent use and complex operating environments. This connector has undergone strict aseptic treatment, which can effectively prevent microbial contamination such as bacteria and viruses, ensuring the safety and effectiveness of medical operations.
| PEEK Parameters | |||||
| NO. | Item no. | Unit | PEEK-1000 | PEEK-CA30 | PEEK-GF30 |
| 1 | Density | g/cm3 | 1.31 | 1.41 | 1.51 |
| 2 | Water absorption (23℃ in air) |
% | 0.2 | 0.14 | 0.14 |
| 3 | Tensile strength | MPa | 110 | 130 | 90 |
| 4 | Tensile strain at break | % | 20 | 5 | 5 |
| 5 | Compressive stress(at 2% nominal strain) | MPa | 57 | 97 | 81 |
| 6 | Charov impact strength(unnotched) | KJ/m2 | No break | 35 | 35 |
| 7 | Charov impact strength(notched) | KJ/m2 | 3.5 | 4 | 4 |
| 8 | Tensile modulus of elasticity | MPa | 4400 | 7700 | 6300 |
| 9 | Ball indentation hardness | N/mm2 | 230 | 325 | 270 |
| 10 | Rockwell hardness | -- | M105 | M102 | M99 |
